Phoenix Gold RX Series Amplifiers

The RX amplifiers feature high quality doubled sided circuit board with SMT parts. Each part is computer tested before instantly inserted and soldered by machine onto the PCB. The result is the correct part secured in the correct place for the lifetime of the amplifier. These, quite frankly, provide the best bang for the buck available today. Built tough with a heavy duty heatsink, robust unregulated power supply, oversized direct input power and speaker terminals. They also sound sweet thanks to the audiophile bi-polar output transistors. Want to upgrade your stock system without changing the head unit? No problem, the high level input makes breathing new life into your stock system simple. RX-series amplifiers will power your audio system to new levels everyday and all day without breaking the bank.

RX250.1

RX250.1 Specifications

250 Watts x 1 Channel / 2 Ohms
150 Watts x 1 Channel / 4 Ohms
LOW PASS RANGE
30Hz to 300Hz
LOW PASS SLOPE
12dB/Octave
SUBSONIC RANGE
10Hz to 55Hz
SUBSONIC FILTER SLOPE
12dB/Octave
BASS BOOST
0 to +18dB
VARIABLE PHASE
0 to 180 degrees

RX250.1 Features

High and Low Pass Crossovers
Audiophile BiPolar Output Transistors
High Level Inputs for easy OEM Integration
Robust Unregulated Power Supply
Surface Mount Component Technology
Direct Insert Power and Speaker Terminals
Audio Precision Quality Control Verification
High Temperature Plexiglass cover
RBC- Remote subwoofer level control included (RX250.1, RX500.1, RX1100.1, RX600.5)
RMD – Remote Monitoring Display Port”



RX500.1

RX500.1 Specifications

POWER RATING
500 Watts x 1 Channel / 2 Ohms
300 Watts x 1 Channel / 4 Ohms
LOW PASS RANGE
30Hz to 300kHz
LOW PASS SLOPE
12dB/Octave
SUBSONIC RANGE
10Hz to 55Hz
SUBSONIC FILTER SLOPE
12dB/Octave
BASS BOOST
0 to +18dB
VARIABLE PHASE
0 to 180 degrees

RX500.1 Features

High and Low Pass Crossovers
Audiophile BiPolar Output Transistors
High Level Inputs for easy OEM Integration
Robust Unregulated Power Supply
Surface Mount Component Technology
Direct Insert Power and Speaker Terminals
Audio Precision Quality Control Verification
High Temperature Plexiglass cover
RBC- Remote subwoofer level control included (RX250.1, RX500.1, RX1100.1, RX600.5)
RMD – Remote Monitoring Display Port”



RX1100.1

RX1100.1 Specifications

POWER RATING
1100 Watts x 1 Channel / 1 Ohms
800 Watts x 1 Channel / 2 Ohms
LOW PASS RANGE
30Hz to 300Hz
LOW PASS SLOPE
12dB/Octave
SUBSONIC RANGE
10Hz to 55Hz
SUBSONIC FILTER SLOPE
12dB/Octave
BASS BOOST
0 to +18dB
VARIABLE PHASE
0 to 180 degrees

RX1100.1 Features

High and Low Pass Crossovers
Audiophile BiPolar Output Transistors
High Level Inputs for easy OEM Integration
Robust Unregulated Power Supply
Surface Mount Component Technology
Direct Insert Power and Speaker Terminals
Audio Precision Quality Control Verification
High Temperature Plexiglass cover
RBC- Remote subwoofer level control included (RX250.1, RX500.1, RX1100.1, RX600.5)
RMD – Remote Monitoring Display Port”



RX400.4

RX400.4 Specifications

POWER RATING
100 Watts x 4 Channel / 2 Ohms
75 Watts x 1 Channel / 4 Ohms
LOW PASS RANGE
40Hz to 400Hz
LOW PASS SLOPE
12dB/Octave
HIGH PASS RANGE
40Hz to 400Hz
HIGH PASS SLOPE
12dB/Octave

RX400.4 Features

High and Low Pass Crossovers
Audiophile BiPolar Output Transistors
High Level Inputs for easy OEM Integration
Robust Unregulated Power Supply
Surface Mount Component Technology
Direct Insert Power and Speaker Terminals
Audio Precision Quality Control Verification
High Temperature Plexiglass cover
RBC- Remote subwoofer level control included (RX250.1, RX500.1, RX1100.1, RX600.5)
RMD – Remote Monitoring Display Port”

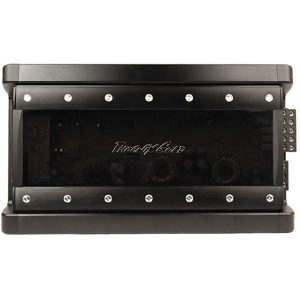

RX600.5

RX600.5 Specifications

POWER RATING
80 Watts x 4 Channel / 2 Ohms
60 Watts x 4 Channel / 4 Ohms
300 Watts x 1 Channel / 2 Ohms
200 Watts x 1 Channel / 4 Ohms
LOW PASS RANGE
(sub) 30Hz to 300kHz
LOW PASS SLOPE
12dB/Octave
HIGH PASS RANGE
F/R: 15Hz to 300Hz
HIGH PASS SLOPE
12dB/Octave

RX600.5 Features

Class A/B and D hybrid
High Quality SMT Double Sided PCB
12dB filters for all channels
Dual Power Supplies
RMS power rated (Front/Rear channels do about 5% more than rated, the sub channels does about 10% more)
High and Low Pass Crossovers
Audiophile BiPolar Output Transistors
High Level Inputs for easy OEM Integration
Robust Unregulated Power Supply
Surface Mount Component Technology
Direct Insert Power and Speaker Terminals
Audio Precision Quality Control Veri cation
High Temperature Plexiglass cover
Remote bass control included (Important the bass control is just a knob, no housing or LED, if you plug the original RBC housing verson w/LED in this amp it will still work ne. LPL will not work.)
Birth Certficate included



RMD

RMD Remote Voltage Display

The RMD allows the amplifier’s voltage to viewed from nearly anywhere in the vehicle. The display is easily mounted with four small screws and includes a 20ft cable that plugs directly into the amplifier’s RMD port.

RMD Features

Remote Mountable Amplifier Voltage Display
Compact Size for Easy Installation in Any Vehicle
Backlit Blue Display for Excellent Day and Night Time Viewing
Plugs into the RMD port on R, Ti, Elite and certain SD amplifiers
Includes all Mounting Hardware and Cable
